Customized Alloy Mineral Insulated Heating Cable Thermocouple

Brand Name : LEADKIN

Model Number : LK-K

Certification : ISO,

Place of Origin : CHINA

MOQ : 100M

Price : USD 0.99-30/M

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1,000,000M/year

Delivery Time : 2-7 working days

Packaging Details : 68*68*8cm Carton

Sheath Material : SS304,SS321,SS316,310S,Inconel600

Calibration : K,N,E,J,T,R,B,S,Pt100

Dia : 0.5mm-12.7mm

Name : High Purity Type E MI Thermocouple Heating Cable With Low Price

Purity of MgO : ≥99.6%

Sample : free

Package : Carton

Type : single double

Contact Now

Customized Alloy Mineral Insulated Heating Cable Thermocouple

Mineral insulated heating cable, also called MI-cable, is a series-resistant flexible heating cable with outer shield of stainless steel, copper-nickel or Inconel®. MI-cable is manufactured in the same way as a tubular heater, with spiralized resistance wire surrounded by magnesium oxide as an insulator and an outer shield. The small diameter allows the MI-cable to be bent and shaped according to the object to be heated. The transition between hot and cold parts is laser welded and can withstand a heat exposure up to 1000°C.

Common uses of mineral insulated heating cables are heating of process pipes and valves, heating panels, vacuum techniques, molds, underwater radiators, reactors, sodium transportation pipes, salt transport for curing bainite, bitumen plants, gas plants and refineries etc.

Mineral insulated heating cables transmit very high power and temperature and have excellent corrosive protection properties against alkalis and acids.

Quick Details:

Name: High Purity Type E MI Thermocouple Heating Cable With Low Price

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm): 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

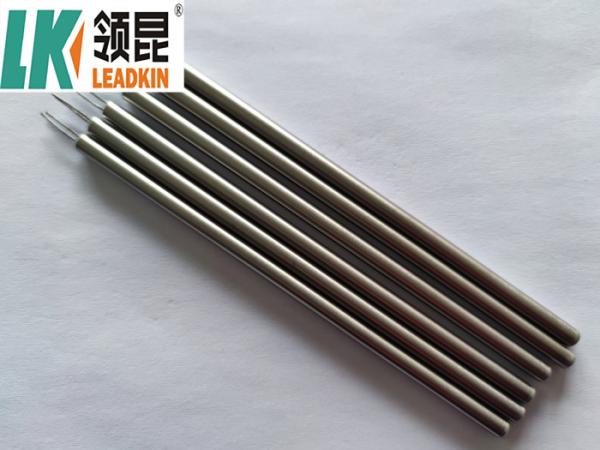

Product Pictures

Customized Alloy Mineral Insulated Heating Cable Thermocouple

Customized Alloy Mineral Insulated Heating Cable Thermocouple

Customized Alloy Mineral Insulated Heating Cable Thermocouple

Company Information:

A. Main Products

Customized Alloy Mineral Insulated Heating Cable Thermocouple

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

Customized Alloy Mineral Insulated Heating Cable Thermocouple

Customized Alloy Mineral Insulated Heating Cable Thermocouple

C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

Customized Alloy Mineral Insulated Heating Cable Thermocouple

FAQ:

1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
